Quansheng TG-45UV Protocol Reversing

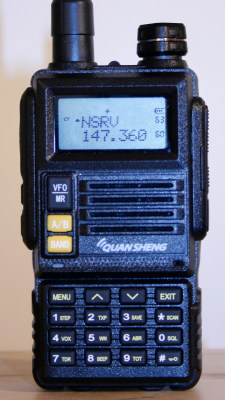

Quansheng TG-45UV
On a whim, I recently purchased the apparently new Quansheng TG-45UV to replace the Quansheng TG-UV2 I lost this last summer. A review and/or video might be forthcoming, but in the meantime I spent some time reverse engineering the serial protocol / data structure. If you have one of these radios and want programming software, the Quansheng TG-K4AT UV software works and is what I based my efforts on.

Most of this post will just be a text file document that I created for myself while doing the work. The protocol is a simple memory access scheme, and it appears that you read/write directly to the internal EEPROM. Unfortunately it’s not useful as a CAT scheme.

A final note is that while I was able to deduce most of this looking at the saved data files (which are raw memory dumps) from the software, I didn’t test the serial protocol reversing, so there might be additional reset codes etc. that are required. Good luck if you decide to implement a module for CHIRP or similar, that would be great to see!

MEMORY MAP FOR QUANSHENG TG-45UV
================================

OFFSET		LENGTH	DESC

0x0000		0x10	Fill with 0xff
0x0010		0x10	CH1 SETTINGS
0x0020		0x10	CH2 SETTINGS
...
0x07f0		0x10	CH127 SETTINGS

0x0b00		0x10	DTMF1 SETTINGS [1-9 0xa=0 0xb=* 0xc=# 0xd=A 0xe=B 0xf=C 0x10=D]
0x0b10		0x10	DTMF2 SETTINGS
...
0x0be0		0x10	DTMF15 SETTINGS

0x0bf0		0x10	Fill with 0xff

0x0e20		0x40	RADIO OPTIONS
0x0f60		0x10	VFOA SETTING
0x0f70		0x10	VFOB SETTING
0x0fd0		0x40	Unknown data

0x1000		0x10	Fill with 0xff
0x1010		0x10	CH1 NAME [0-9A-Z]
0x1020		0x10	CH2 NAME
...
0x17f0		0x10	CH127 SETTINGS

0x1f60		0x10	VFOA OPTIONS
0x1f70		0x10	VFOB OPTIONS

CHANNEL SETTINGS BLOCK
----------------------

0x00 		0x4 	RX FREQ [BCD LE]
0x04		0x4 	TX FREQ [BCD LE]
0x08		0x2 	RX TONE [i16 LE]
			 - all bits set - no tone
			 - n & 0x2000 - DCS - code is in lower 12b
			 - n & 0x8000 - if DCS, inverse code
			 - neither bit set - CTCSS - tone is lower 12b * 0.1Hz
0x0a		0x2 	TX TONE [i16 LE] (see above)
0x0c		0x1 	FLAGS:
                        [ MSB |     |     |     /     |     |     | LSB ]
                        [     |     |     |     / BCL       |     |     ]
                        [     |     |     |     / Y:1 |     |     |     ]
0x0d		0x1 	FLAGS:
			[ MSB |     |     |     /     |     |     | LSB ]
                        [     |SCAN?| POW | W/N /PROG?|     |     |     ]
                        [     | Y:1 | H:1 | W:1 / N:1 |     |     |     ]
0x0e		0x1     UNKNOWN:
                        [ MSB |     |     |     /     |     |     | LSB ]
                        [     |     |     |     /      SIGCODE-1 i4     ]
                        [     |     |     |     /                       ]
0x0f		0x1 	UNKNOWN

RADIO OPTIONS BLOCK (0xe20)
---------------------------

0x00		0x1 	B_DISPLAY - 0=number 1=name 2=freq
0x01		0x1 	VFOA_STEP - 0=2.5 1=5 2=6.25 3=10 4=12.5 5=25
0x02
0x03
0x04
0x05		0x1 	VOX, 0 = off 1=on
0x06
0x07		0x1	BDR (dual watch) - 0=off 1=on
0x08
0x09		0x1 	TOT - (n+1) * 15s, max value 0x27 = 600s
0x0a		0x1 	ANI_ONPRESS - 0=off 1=on
0x0b		0x1 	ANI_ONRELEASE 0=off 1=on
0x0c
0x0d		0x1 	BEEP - 0=off 1=on
0x0e		0x1 	VOICE - 0=off 1=on
0x0f
0x10		0x1 	DTMF_SIDETONE - 0=off 1=keypad 2=id code 3=both
0x11
0x12		0x1 	VFOB_STEP - 0=2.5 1=5 2=6.25 3=10 4=12.5 5=25
0x13		0x1 	POWER_SAVE - 0-4
0x14		0x1 	PTT_ID_DELAY - 0-30 ms
0x15		0x1 	PTT_ID - 0=off 1=begin 2=end 3=both
0x16
0x17		0x1 	A_DISPLAY - 0=number 1=name 2=freq
0x18		0x1 	SCAN_RESUME - 0=time 1=carrier 2=search
0x19		0x1 	AUTO_LOCK - 0=off 1=on
0x1a
0x1b		0x1 	DTMF_ON_TIME  - n*10 + 50 ms, 0-195 (max 2000)
0x1c		0x1 	DTMF_OFF_TIME - n*10 + 50 ms, 0-195 (max 2000)
0x1d		0x1 	WAIT_COLOR - 0=off 1=green 2=red 3=yellow
0x1e		0x1 	RX_COLOR   - 0=off 1=green 2=red 3=yellow
0x1f		0x1 	TX_COLOR   - 0=off 1=green 2=red 3=yellow
0x20		0x1 	ALARM_MODE - 0=tone 1=code 2=site
0x21
0x22		0x1 	TX_DURING_DW - 0=disable 1=CHA 2=CHB
0x23		0x1 	TAIL_NOISE_CLEAR - 0=off 1=on
0x24		0x1 	PASS_REPERT_NOISE (???) - n * 100
0x25		0x1 	PASS_REPERT (???) - n * 100
0x26		0x1 	POWER_ON_DISLAY - 0=all segments 1=message
0x27		0x1 	ROGER_BEEP - 0=off 1=on
0x28		0x1 	CH_MODE_MENU - 0=off 1=on
0x29		0x1 	FM_RADIO_ENABLE - 0=off 1=on
0x2a
0x2b		0x1 	RESET_ENABLED - 0=off 1=on
0x2c		0x1 	VFO_MEM - 0=vfo 1=mem
0x2d		0x1 	KEY_LOCK - 0=off 1=on
...
0x3a		0x5 	ANI_CODE
...
0x4e		0x1 	ABR (backlight timer) - 0-5 (seconds)

VFO OPTIONS BLOCK (0x1f60)
--------------------------

0x00		0x1 	SHIFT - 0=off 1=+ 2=-
0x01		0x4 	OFFSET - BCD * 10KHz
...


COMMANDS
========

serial 9600bps

MAGIC NUMBER - 0x49 0x69 0x4e 0x48 0x53 0x47 0x30 0x4e 0x02
  EXPECT 0x06

IDENTIFY RADIO - 0x02
  EXPECT 0x06 + MODEL "J5602C" + 0xf8 (cksum?)

ENTER MEMORY MODE? - 0x06
  EXPECT 0x06

READ MEMORY - 0x52 [2 byte address] [1 byte length]
  EXPECT 0x57 [2 byte address] [1 byte length] [n bytes data]

WRITE MEMORY - 0x57 [2 byte address] [1 byte length]
  EXPECT 0x06
